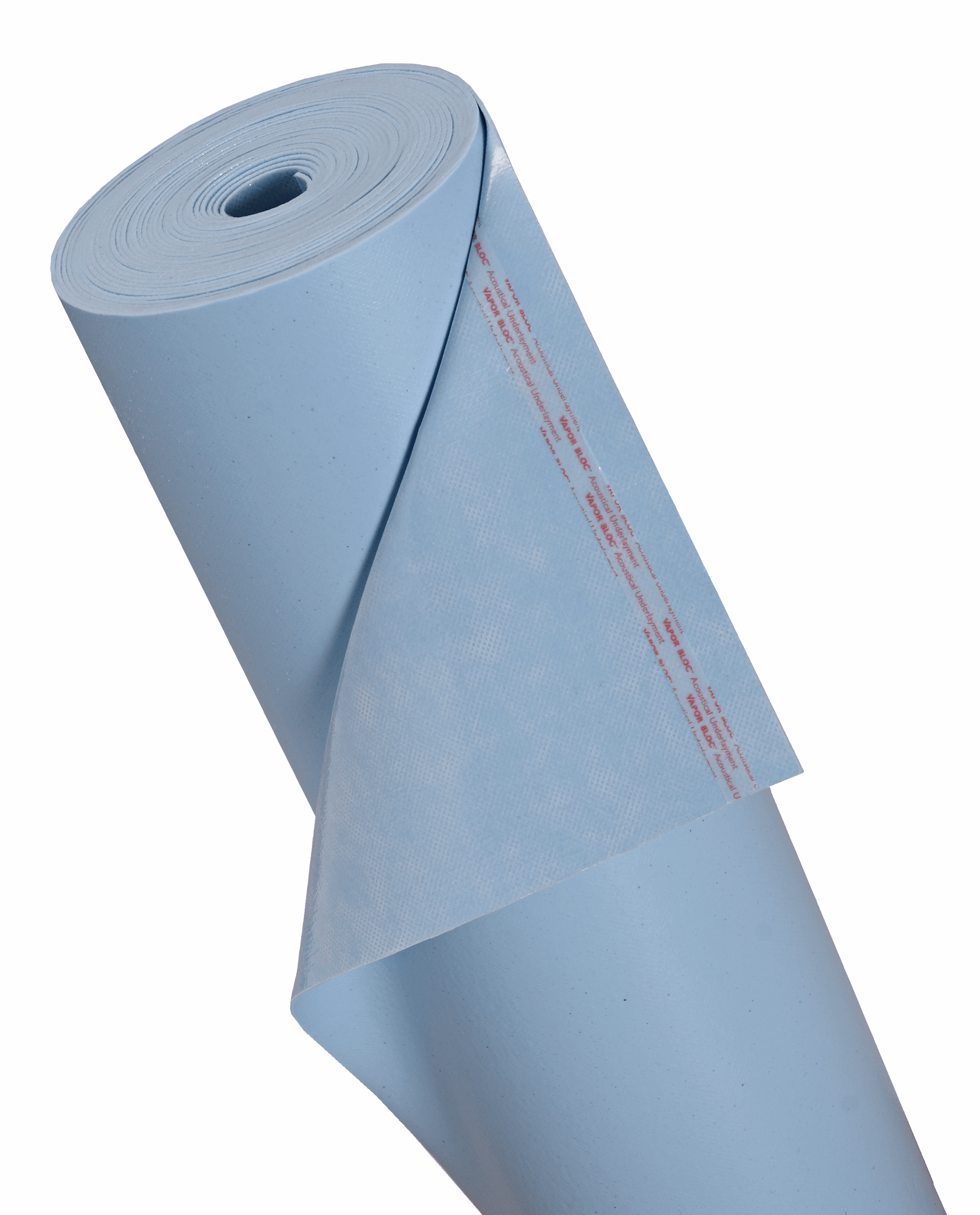

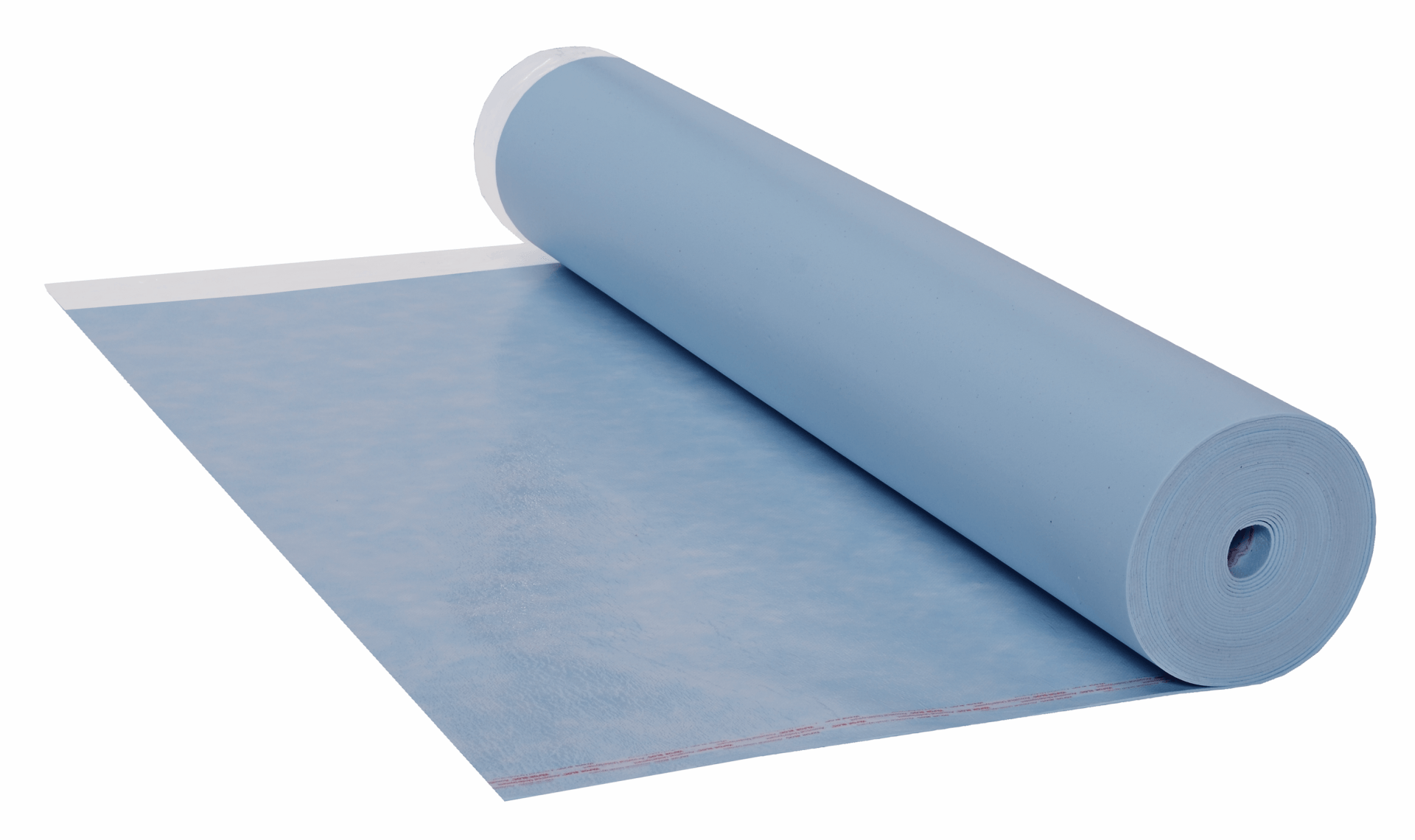

Sound Solution Vapor Bloc

Sound Solution Vapor Bloc Acoustical Underlayment is a patented high-density polyurethane acoustic foam that significantly reduces unwanted noise by up to 21 decibels. It meets or exceeds acoustical code requirements for residential and commercial flooring applications. Features an attached moisture vapor film. Works great beneath laminate, engineered wood, and solid hardwood flooring. It is suitable for use over subfloor substrates such as Plywood, Concrete, OSB, and Cement Board. And, it can be used in floating, and nail down installation methods.

Sound Solution Vapor Bloc Acoustical Underlayment is a patented high-density polyurethane acoustic foam that significantly reduces unwanted noise by up to 21 decibels. It meets or exceeds acoustical code requirements for residential and commercial flooring applications. Features an attached moisture vapor film. Works great beneath laminate, engineered wood, and solid hardwood flooring. It is suitable for use over subfloor substrates such as Plywood, Concrete, OSB, and Cement Board. And, it can be used in floating, and nail down installation methods.

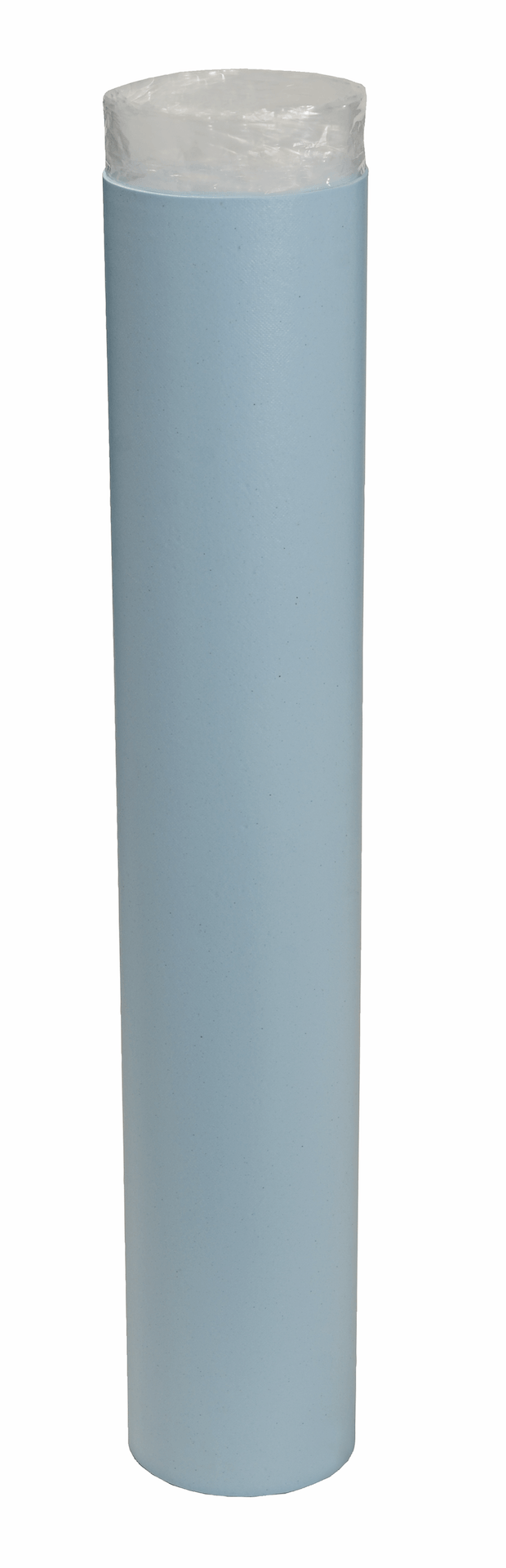

Sound Solution Vapor Bloc - DIY Roll

(49 Rolls Sold Per Pallet)

Item Number

SSVB4900P

Roll Dimensions

3' x 33'4" (0.9m x 10.2m Roll)

Square Feet Per Roll

100 ft2 (9.3m2)

Shipping Weight

16 lbs. (7.26kg)

Sound Solution Vapor Bloc - Contractor Roll

(Rolls Sold Individually)


Item Number

SSVB450

Roll Dimensions

6' x 75' (1.82m x 22.86m)

Square Feet Per Roll

450 (334.5m2)

Shipping Weight

72 lbs. (32.66kg)

Features & Benefits

• High Density - 20 lbs. / ft3

• 0.085" Thick (2.16mm) Made of New Materials

• Patented Acoustic Foam Technology

• Excellent Noise Reduction

• Moisture & Vapor Protection

• Mold & Odor Resistant - Antimicrobial Protection

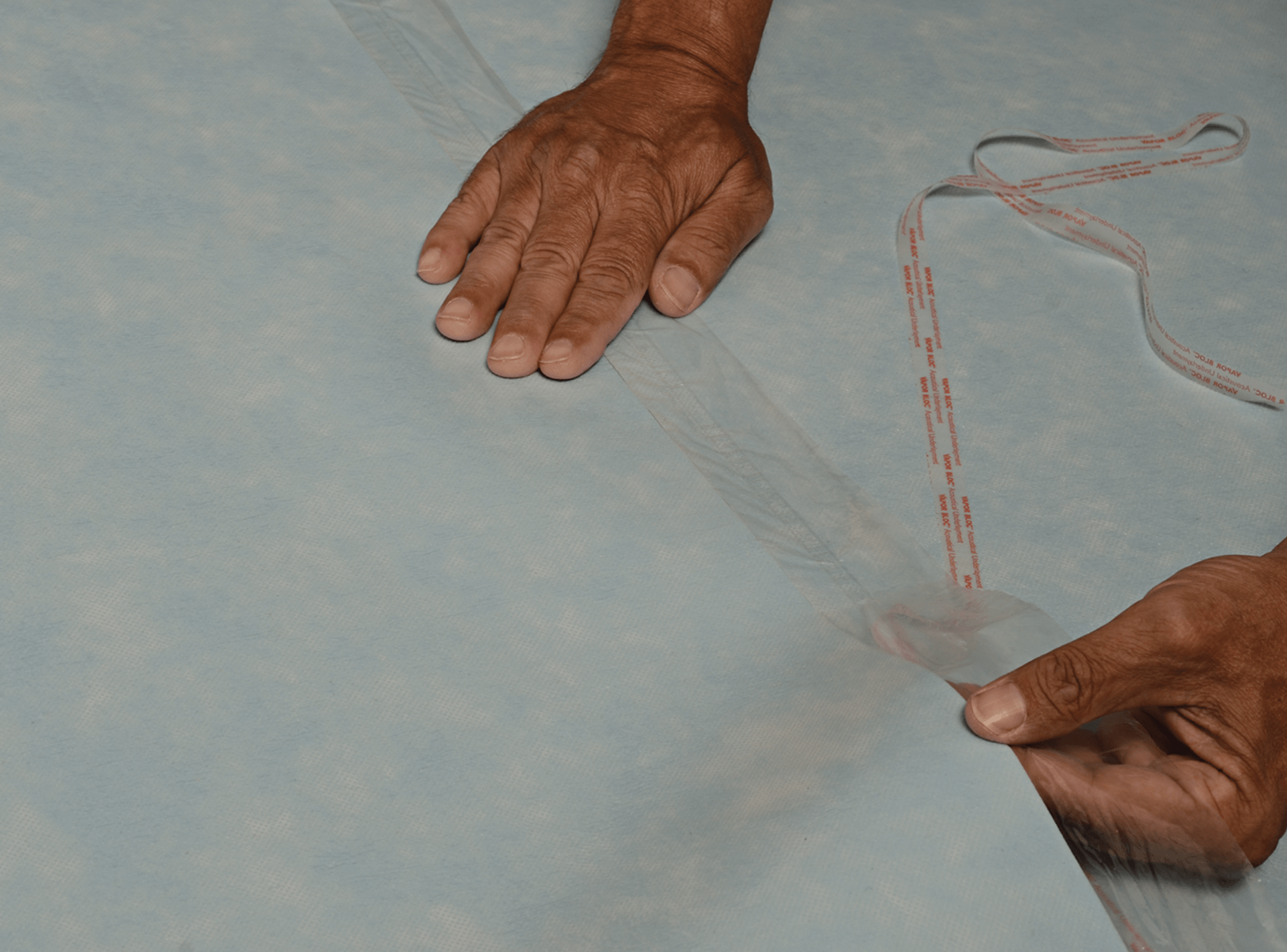

• Lip & Tape System

• R-Value 0.08 - Radiant Heat Approved

• Lifetime Warranty

• Highest Rated Vapor Warranty

• Quick and Easy to Install

• Contributes to LEED

• UL GREENGUARD Gold Certified

• Low Emissions - Good Air Quality

• Made with 55% Natural Resources

• Contains No Harmful Chemicals

• 100% Recyclable

• Made in the USA


Specifications

Material Composition

Frothed Polyurethane Foam

Thickness (ASTM D3574)

0.085" (2.16mm)

Density (ASTM D3574)

20 lbs./ft3 (320.37kg/m3)

Compression Set (ASTM D3574)

7% max

Tensile Strength (ASTM D3574)

100 lbs/ft2 (488.2 kg/m2)

ILD - 25% (ASTM D3574)

32 lbs/ft2 (156.2 kg/m2)

ILD - 65% (ASTM D3574)

200+ lbs/ft2 (976.5+ kg/m2)

NBS Smoke Density (ASTM E662)

<100 max

Flammability Test (DOC FF 1-70)

Pass

Thermal Transmission R-Value (ASTM C518)

0.36 (Excellent for Radiant Heated Floors)

Thermal Transmission R-Value (ASTM C518)

0.08˚ F h/Btu

(Excellent for Radiant Heated Floors)

Water Vapor Transmission (ASTM E96-10)

0.46

Water Vapor Transmission

For Moisture Protection Use

OmniChoice Vapor Bloc

Antimicrobial Protection

Yes

Indoor Air Quality

UL GREENGUARD® GOLD

Certified for Low Chemical Emissions - UL2818

Installation Method

Approved for Floating, Nail-Down,

Glue-Down, and Thin-Set

Installation Method

Approved for Floating, Nail-Down, Glue-Down, and Thin-Set

Warranty

Lifetime Warranty

Moisture & Vapor Warranty (ASTM F1869)

Warranted up to 10lbs / 1,000ft2 / 24hrs

Sustainability

& Recyclability

Sustainability & Recyclability

Recyclability

100% Post-Consumer Recyclable

LEED Credit EQ 4.3

Low-Emitting Materials - Flooring Systems

LEED Credit MR 5.1

10% Extracted, Processed & Manufactured Regionally

LEED Credit MR 5.2

20% Extracted, Processed & Manufactured Regionally

Acoustic Test Results

Scroll Right to View Details

Test Type Results Flooring Type Floor Asembly Ceiling Assembly Test Report
Delta IIC 21 Laminate 6 inch Concrete Slab Ceiling Download
IIC 73 Laminate 6 inch Concrete Slab Ceiling Download
IIC 65 Hardwood 8 inch Concrete Slab Ceiling Download
IIC 59 LVP 6 inch Concrete Slab Ceiling Download
IIC 52 Laminate 6 inch Concrete Slab No Ceiling Download
IIC 60 Laminate 6 inch Concrete Slab Ceiling Download
STC 54 LVT 1/2" Gypcrete Wood Truss 18" OC Ceiling Download
STC 51 LVP 6 inch Concrete Slab Ceiling Download
STC 67 Laminate 6 inch Concrete Slab Ceiling Download
STC 56 Bamboo 3/4" Gypcrete Wood Truss 24" OC Ceiling Download
