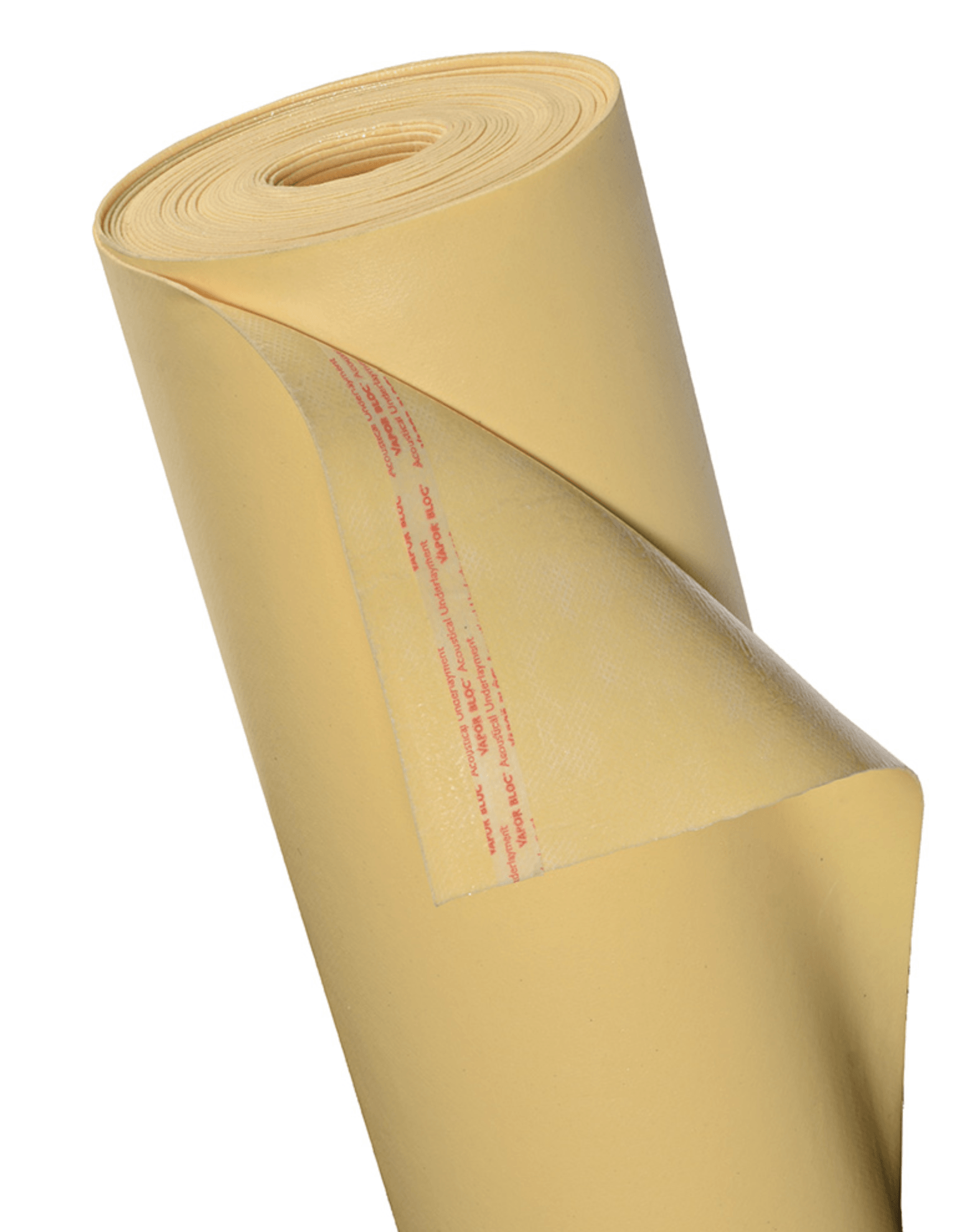

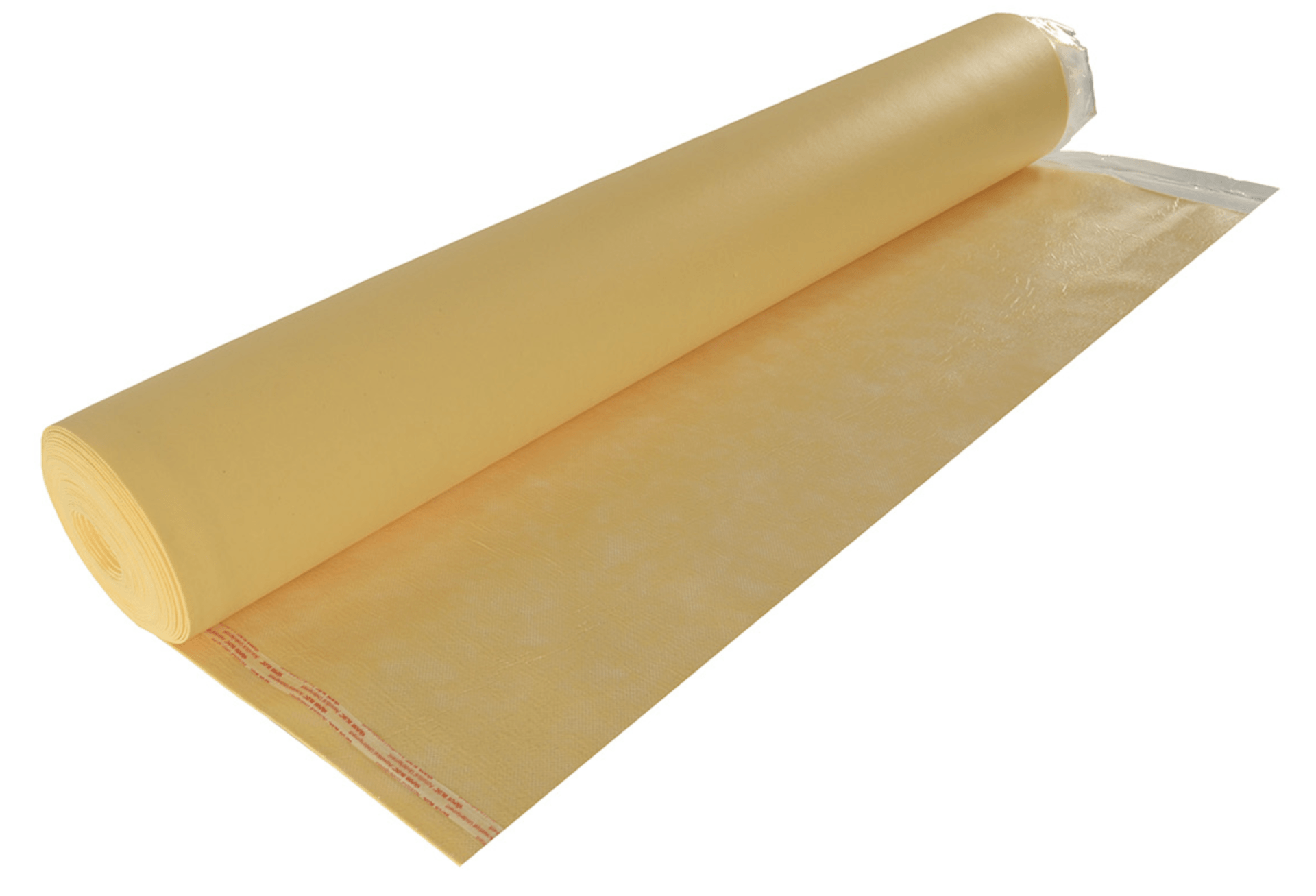

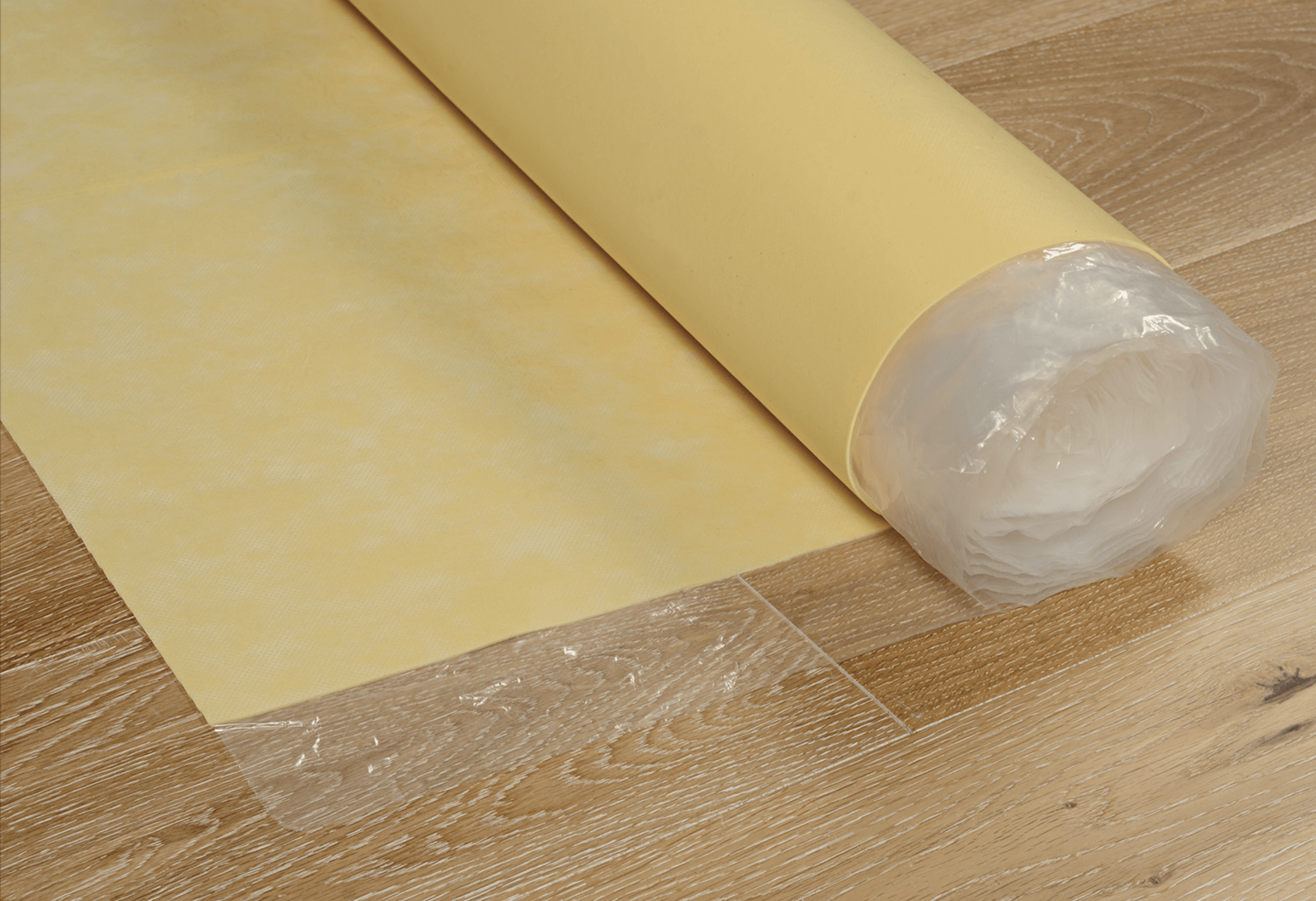

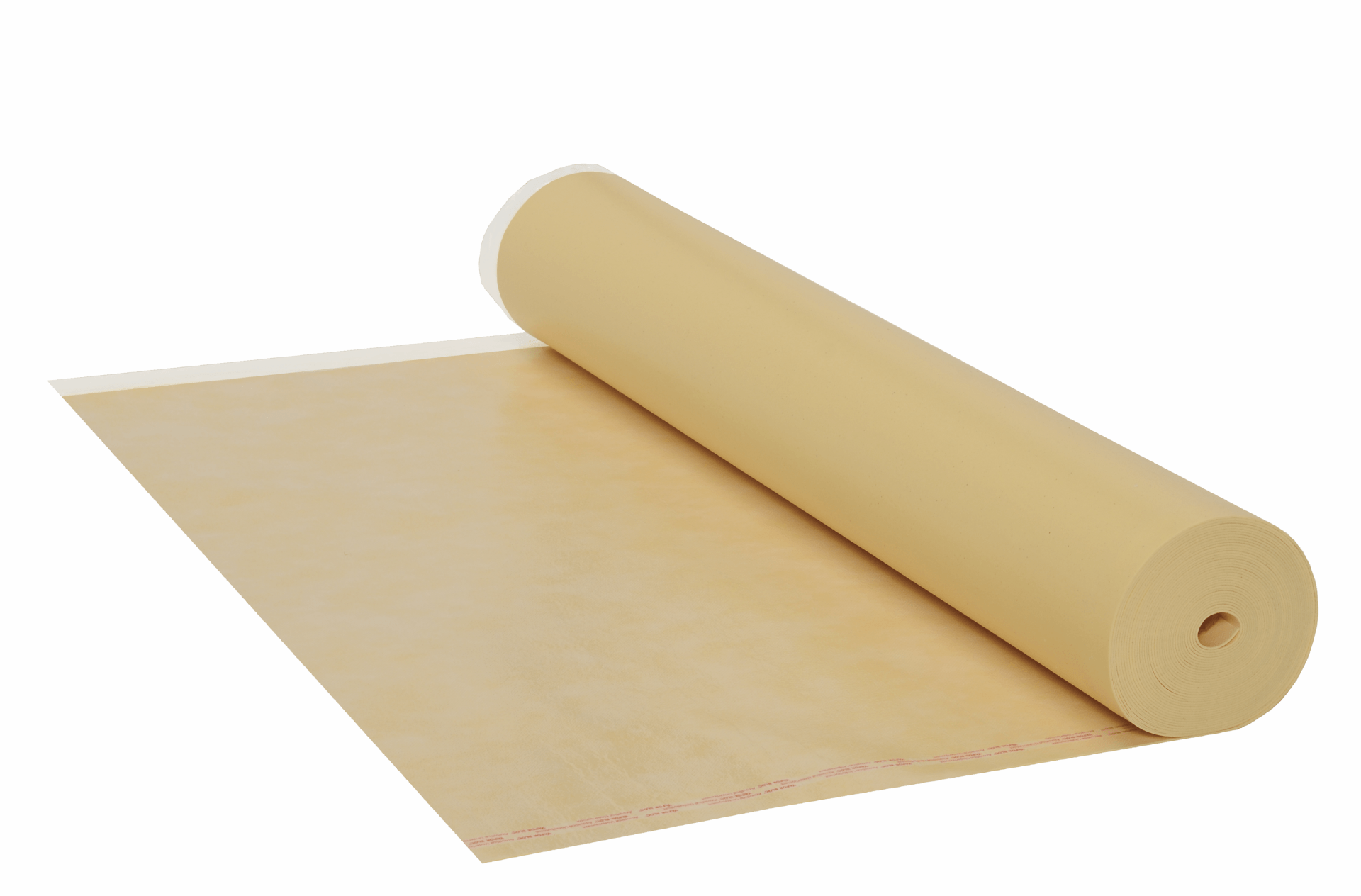

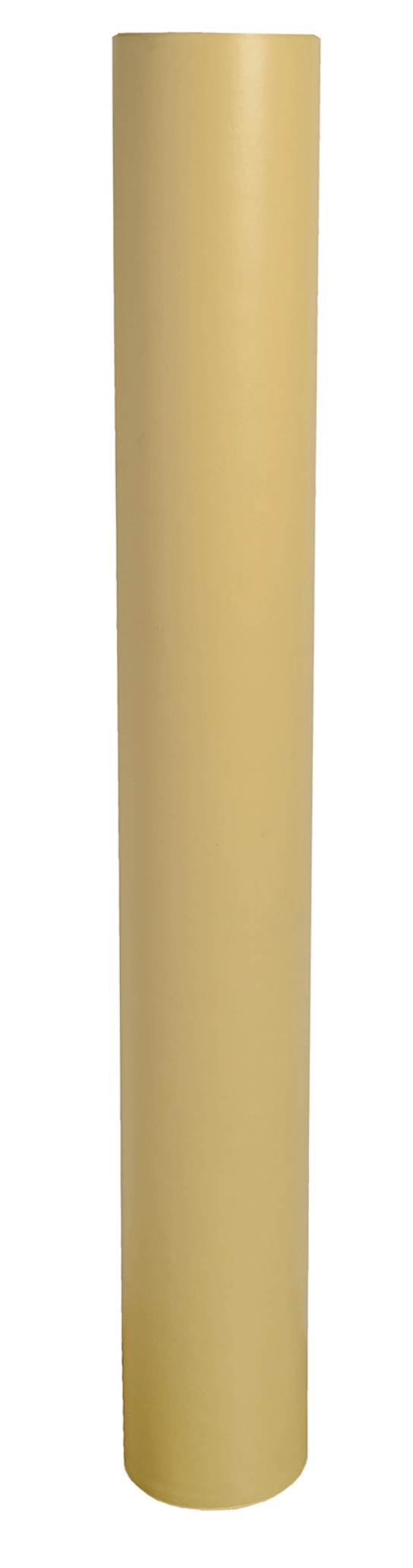

OmniChoice Vapor Bloc
(100 Square Foot Roll - 72 Rolls Per Pallet)
Item Number
OCVB7200
Roll Dimensions
3' x 33'4" (0.9m x 10.2m Roll)
Square Feet Per Roll
100 ft2 (9.3m2)
Roll Shipping Weight
13 lbs. (5.9kg)
Pallet Quantity
72 Rolls per palletized Box
Pallet Dimensions
49"H x 48"W x 40"L (1.22m x 1.25m x 1m)
Pallet Shipping Weight
980lbs (444.5kg)
OmniChoice Vapor Bloc
(Contractor Roll - 450 Square Feet)
Item Number
OCVB450
Roll Dimensions
6' x 75' (1.82m x 22.86m)
Square Feet Per Roll
450 (334.5m2)
Shipping Weight
57 lbs. (196kg)
Features & Benefits
• Patented Acoustic Foam Technology
• Excellent Noise Reduction
• High Density - 25 lbs. / ft3
• 0.055" Thick (1.4mm) Made of New Materials
• R-Value 0.08 - Radiant Heat Approved
• Lifetime Warranty
• Antimicrobial Protection
• Highest Rated Moisture Warranty - 10 lbs.

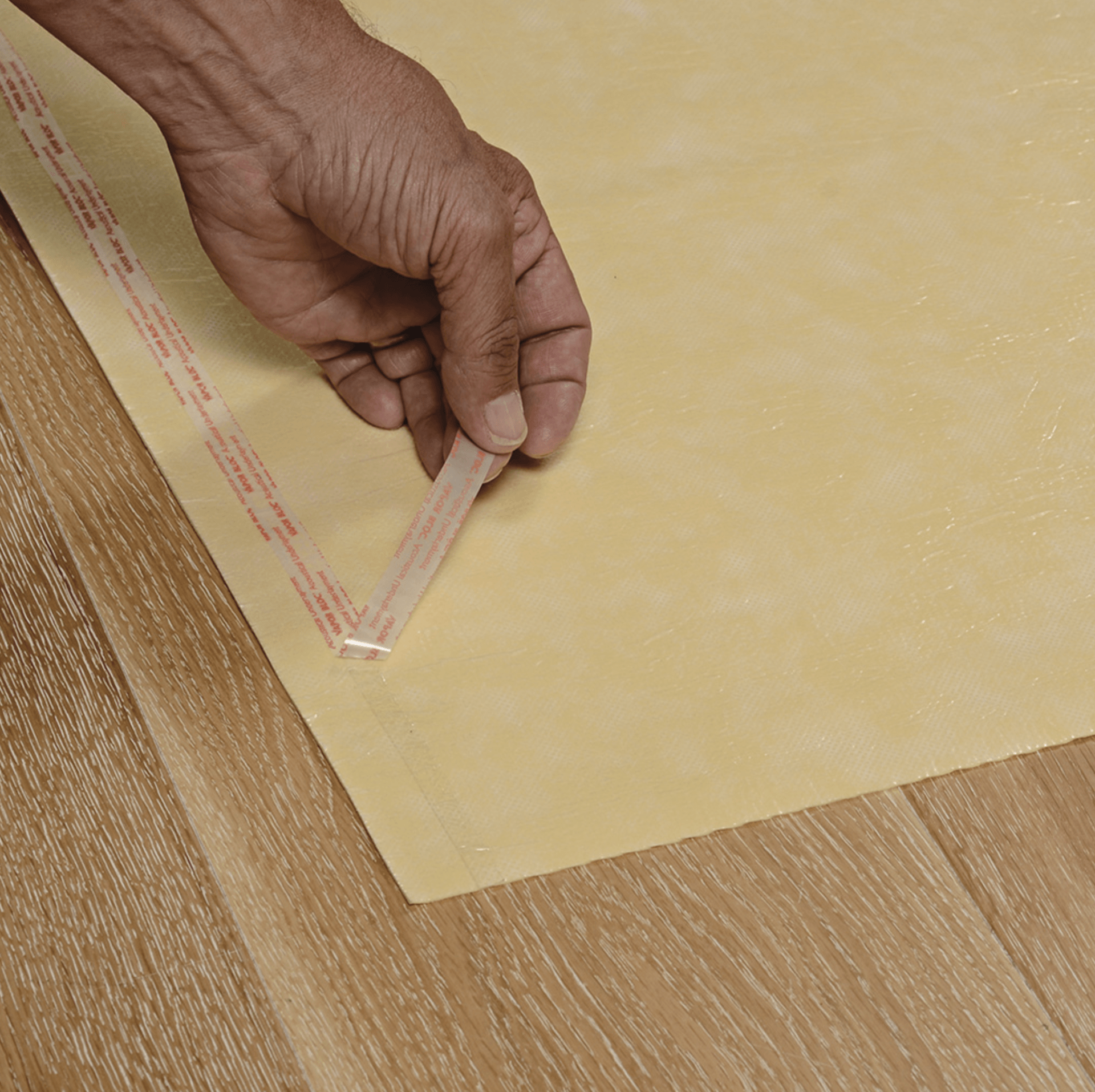

• Vapor Bloc Film with Lip & Tape System
• Quick and Easy to Install
• UL Greenguard Gold Certified
• Low Emissions - Good Air Quality
• Made with 50% Non-Petrochemicals
• 100% Recyclable
• Made in the USA
Specifications
Material Composition
Frothed Polyurethane Foam with Polyethylene Vapor Barrier
Thickness (ASTM D3574)
0.055" (1.4mm)
Density (ASTM D3574)
25 lbs./ft3 (400.5 kg/m3)
Compression Set (ASTM D3574)
5% max
Tensile Strength (ASTM D3574)
100 lbs/ft2 (488.2 kg/m2)
ILD - 25% (ASTM D3574)
32 lbs/ft2 (156.2 kg/m2)
ILD - 65% (ASTM D3574)
200+ lbs/ft2 (976.5+ kg/m2)
NBS Smoke Density (ASTM E662)
<100 max
Flammability Test (DOC FF 1-70)
Pass
Antimicrobial Protection
Yes
Indoor Air Quality
UL GREENGUARD® GOLD
Certified for Low Chemical Emissions - UL2818
Warranty
Lifetime Warranty
Recyclability
100% Post-Consumer Recyclable
LEED Credit EQ 4.3
Low-Emitting Materials - Flooring Systems
LEED Credit MR 5.1
10% Extracted, Processed & Manufactured Regionally
LEED Credit MR 5.2
20% Extracted, Processed & Manufactured Regionally
Acoustic Test Results
| Test Type | Results | Flooring Type | Floor Asembly | Ceiling Assembly | Test Report |
|---|---|---|---|---|---|
| Delta IIC | 20 | Laminate | 6 inch Concrete Slab | Ceiling | Download |
| Delta IIC | 22 | LVT | 6 inch Concrete Slab | Ceiling | Download |
| IIC | 44 | Ceramic Tile | 6 inch Concrete Slab | Ceiling | Download |
| IIC | 44 | LVP | 3/4" Gypcrete Wood Truss 18" OC | Ceiling | Download |
| IIC | 50 | Laminate | 6 inch Concrete Slab | No Ceiling | Download |
| IIC | 51 | Ceramic Tile | Wood Joist 24" OC | Ceiling | Download |
| IIC | 52 | LVT | 6 inch Concrete Slab | No Ceiling | Download |
| IIC | 71 | Laminate | 6 inch Concrete Slab | Ceiling | Download |
| IIC | 73 | LVT | 6 inch Concrete Slab | Ceiling | Download |
| STC | 51 | Laminate | 6 inch Concrete Slab | No Ceiling | Download |
| STC | 52 | LVT | 6 inch Concrete Slab | No Ceiling | Download |
| STC | 54 | LVP | 3/4" Gypcrete Wood Truss 18" OC | Ceiling | Download |
| STC | 54 | Ceramic Tile | Wood Joist 24" OC | Ceiling | Download |
| STC | 54 | LVT | 3/4" Gypcrete Wood Truss 18" OC | Ceiling | Download |
| STC | 67 | Laminate | 6 inch Concrete Slab | Ceiling | Download |
| STC | 67 | LVT | 6 inch Concrete Slab | Ceiling | Download |
